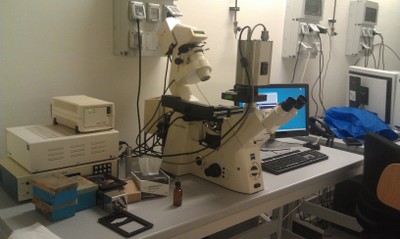

Zeiss Axiovert 200M
|
|
Camera
|
Photometrics CoolSnap HQ:
- CCD 1392X1040px;
- Pixel size: 6,45mmX6,45mm;
- Digitization: 12 bit
|
|
Light source
|
HBO 100 Mercury lamp
|
|
Objectives carousel
|
- FLUAR 10X/0,50 , cod. 440135
- Plan-NeoFluar 20X/0,50, cod. 1004-072
- C-Apochromat 40X/1,2 W Korr, cod. 440052
- Plan-NEOFLUAR 100X/1,3 Oil, cod. 440481
- Plan-APOCHROMAT 63X/1,4 Oil DIC, cod. 440762-9904
|
|
Filters carousel
|
- empty
- filterset 49: Excitation: G365, (bandpass, 365nm)
Beamsplitter: FT 395
Emission: BP 445/50
- filterset 38: Excitation: BP 470/40
Beamsplitter: FT 495
Emission: BP 525/50
- filterset 43HE: Excitation: BP 550/25
Beamsplitter: FT 570
Emission: BP 605/70
- filterset 50: Excitation: BP 640/30
Beamsplitter: FT 660
Emission: BP 690/50
|
|
Software
|
MetaMorph 7.7.1.0
|
Additional filterset available:
-
filterset 34: Excitation: BP 390/22
Beamsplitter: FT420
Emission: BP 460/50
- filterset 37: Excitation: BP 450/50
Beamsplitter: FT 480
Emission: BP 510/50
N.B: both these filters are no longer avalaible.
|
- HE: high transmission&steep edges
- According to Zeiss website the exc bp filter of filterset43HE is centered at 545 and nota t 550 as stated on the cube
|
|
|
|
|
|
|
|
